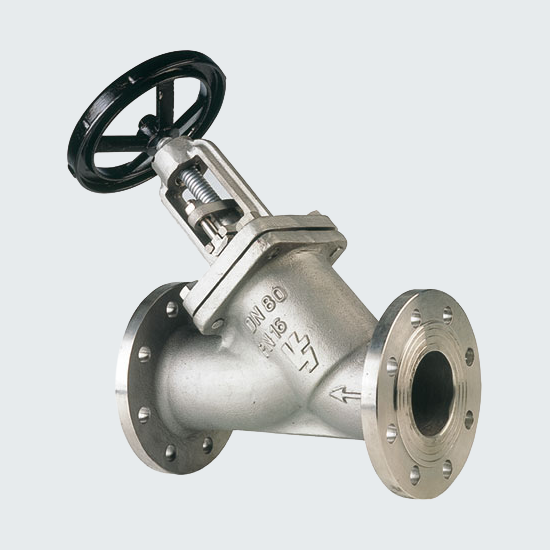

A Y-pattern globe valve angles the seat and stem at roughly 45 degrees to the pipe centerline instead of the 90 degree arrangement in a standard globe valve, creating a straighter, less obstructed path for flow to travel through the body. This reduces pressure drop noticeably compared to a conventional globe valve, since the flow path avoids the sharp S-shaped turn, while still keeping the seat accessible for the same throttling control. The angled stem also sits at a natural angle for insulation in high temperature steam service, where wrapping a straight-up stem can be more difficult to route cleanly.

Common Applications

• High pressure and high temperature steam service
• Applications where pressure drop must be minimized
• Cryogenic service benefiting from reduced turbulence
• Insulated piping systems requiring an angled stem
