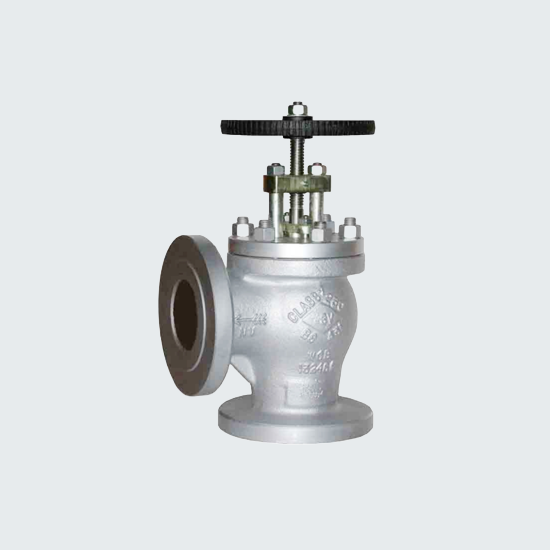

An angle globe valve reroutes flow through a 90 degree turn built directly into the body, combining the throttling function of a standard globe valve with the directional change that would otherwise require a separate elbow fitting. This design reduces the pressure drop compared to a standard globe valve, since flow makes a single turn rather than the S-shaped path through the internal seat and disc, while still preserving the same fine throttling control. Piping layouts that already need a 90 degree turn benefit from this valve, since it removes a fitting from the line and gives the layout one less joint to maintain.

Common Applications

• Piping layouts requiring a 90 degree directional change
• Steam and high pressure drop service
• Applications where reducing fitting count simplifies maintenance
• Throttling service combined with directional routing
